HQ-420 720DY
HQ-420 720DY
| Specifications | ||
| Model | HQ-420DY | HQ-720DY |
| Print Technology | Direct thermal (dry, daylight-load film) | |
| Spatial Resolution | 320dpi (12.6 pixels/mm) | 508dpi(20 pixels/mm) |
| Throughput | 14’’×17’’ ≥70 sheets/h 8’’×10’’ ≥110 sheets/h |
14’’×17’’≥60 sheets/h 8’’×10’’ ≥90 sheets/h |
| Grayscale Contrast Resolution | 14 bits | |
| Film Transferring Method | Suction | |
| Film Tray | Two supply trays, 200-sheet capacity total | |
| Film Sizes | 8’’×10’’,10’’×12’’,11’’×14’’, 14’’×17’’ | |
| Applicable Film | Medical Dry Thermal Film (blue or clear base) | |
| Interface | 10/100/1000 Base-T Ethernet (RJ-45) | |
| Network Protocols | Standard DICOM 3.0 connection | |
| Image Quality | Automatic calibration using built-in densitometer | |
| Control Panel | Touch Screen, Online Display, Alert, Fault and Active | |
| Power Supply | 100-240VAC 50/60Hz 400VA | |
| Weight | 55Kg | |
| Operating Temperature | 5℃-40℃ | |
| Operating Humidity | <=80% | |
| Storage Humidity | 30%-95% | |
| Storage Temperature | 0℃-50℃ | |
| Base Holding | Optional | |

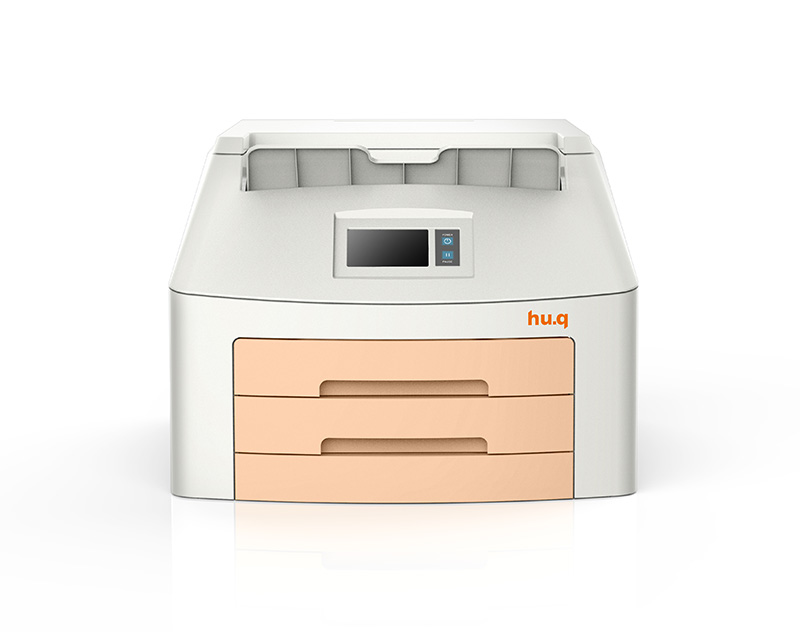

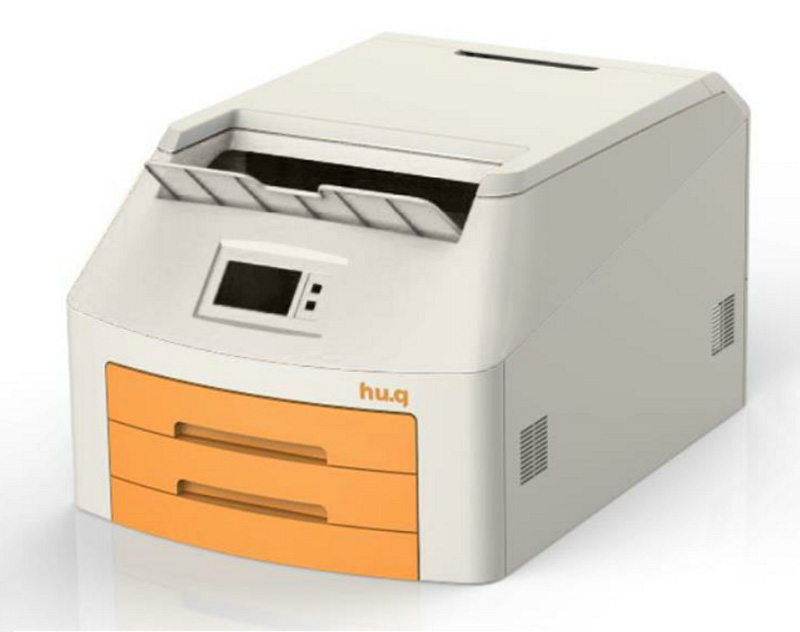

The HQ-DY Series Dry Imager is a thermo-graphic film processor designed to copy and send images through DICOM network protocol. It uses that latest direct dry thermal imaging technology which accommodates for a full range of modalities including CT, MRI, DR, CR, Digital Gastrointestinal, Nuclear Medicine, Mobile X-Ray Imaging and Dentistry , etc. The HQ-DY Series Dry Imager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable iamging catering to your needs
